DYNAMICS - CASE STUDY SOLUTION



  Solution of a)


Arm motion from 0 ≤ t ≤ 1 seconds



Take the time derivative of the position to get an equation for the velocity as a function of time:

     v(t) = dx(t)/dt = d(0.3 t2 - 0.2 t3)/dt

     v(t) = 0.6 t - 0.6 t2 m/s





Arm motion from 1≤ t ≤ 1.5 seconds
  Solution of b)



Take the time derivative of the velocity to get an equation for the acceleration as a function of time:

     a(t) = dv(t)/dt = d(0.6 t - 0.6 t2 )/dt

     a(t) = 0.6 - 1.2 t m/s2

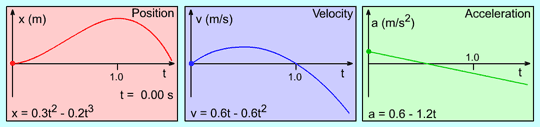

Position-Velocity-Acceleration Curve Relationships
